What is UD Fabric Production Line?

2026-07-12

Ultra-high molecular weight polyethylene (UHMW-PE) is a high-performance polymer fiber material with exceptional specific strength, impact resistance, wear resistance, corrosion resistance, and low friction coefficient. It is widely used in ballistic protection, aerospace, marine engineering, and industrial applications. To fully leverage its outstanding properties, Kuntai's UHMW-PE unidirectional non-woven pre-impregnation technology has become a key technique in the fabrication of high-performance composite materials.

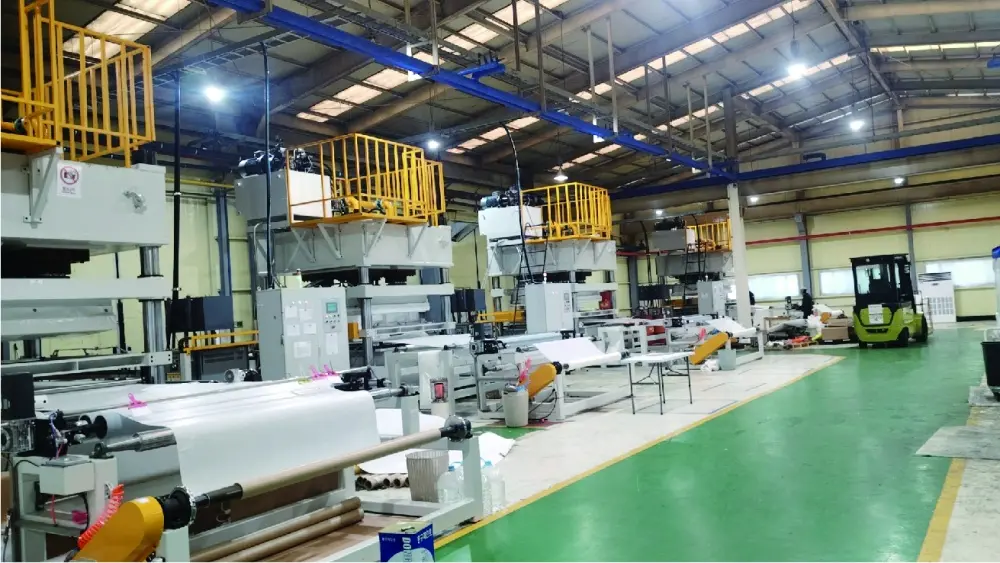

The UHMW-PE UD / Aramid UD fabric production line is an intelligent continuous manufacturing system specifically designed for uniform composite fabrication of UHMW-PE fibers with resin matrix. This line efficiently performs processes including fiber unwinding, resin impregnation, PE film lamination, drying and curing, as well as 0°/90° orthogonal layering, producing high-quality unidirectional (UD) prepregs (such as 2UD, 4UD, etc.) that serve as base materials for subsequent hot-press molding, ballistic plates, lightweight structural components, and other applications.

Main Process Flow

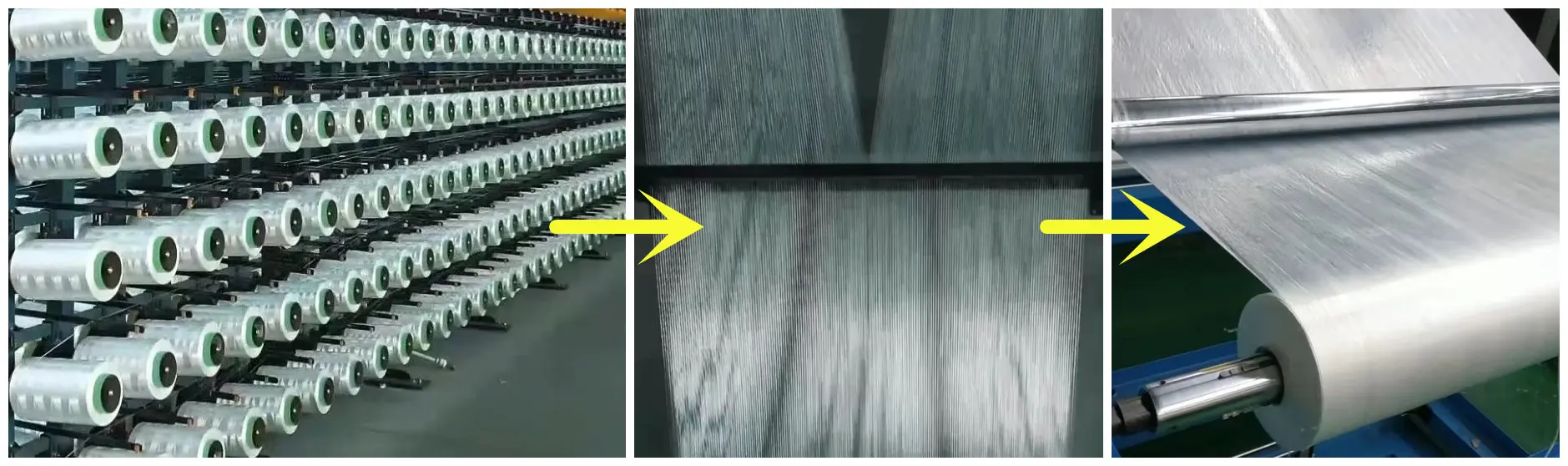

Fiber unwinding and spreading system: high-precision tension control combined with mechanical/pneumatic fiber spreading devices ensures smooth and uniform laying of UHMW-PE or aramid fibers, preventing wrinkles and overlaps.

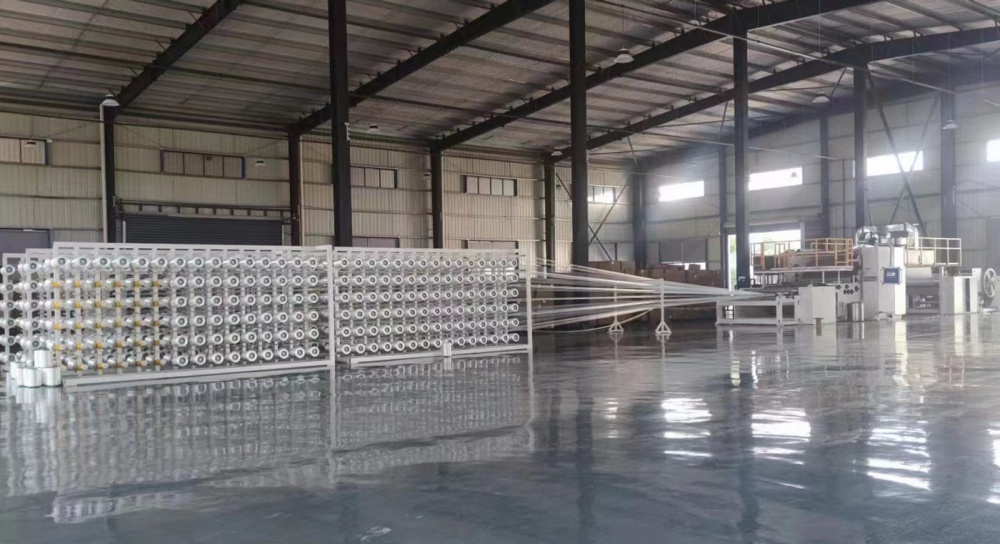

Impregnation Coating System: Utilizes an impregnation tank or precision roller coating technology to evenly penetrate water-based resin into the fiber bundles.

Film Lamination and Bonding Unit: Accurately apply a PE protective film after impregnation, and achieve strong bonding between fiber, resin, and film using hot rollers or hot pressing equipment.

Drying, curing, and cooling system: drying system combined with water-cooled rollers, precisely controlling temperature and pressure to prevent UHMW-PE degradation at high temperatures while ensuring rapid shaping of the prepreg.

Winding and Post-Processing: Automatic alignment, edge trimming, and winding equipment enable continuous and efficient production.

Core advantages of the equipment

Optimized for the low surface energy and high viscosity characteristics of UHMW-PE, equipped with surface treatment and ultra-high-pressure fiber spreading devices to enhance interfacial bonding strength.

Compatible with UHMW-PE UD and aramid UD production: After upgrading and optimization, the same production line can quickly switch to manufacturing aramid UD prepreg, meeting diverse requirements for protection levels.

Intelligent control: Integrated PLC and touch screen system enables real-time monitoring and automatic adjustment of parameters such as temperature, pressure, tension, and speed, improving product consistency and production efficiency (speed up to 5–11 m/min).

Modular design: Compact footprint, supports multi-layer orthogonal combinations such as 2UD and 4UD, with product widths ranging from 1200 to 2500 mm available.

This production line is widely used in high-performance composite materials such as bulletproof vests, helmets, blast-resistant panels, lightweight armor, and applications in aviation and shipbuilding. With the growing demand for national defense security and lightweight materials, the market for UHMW-PE/aramid unidirectional prepreg continues to expand.

Jiangsu Kuntai Machinery Co., Ltd. has further upgraded its filament spreading, impregnation, and temperature control systems based on existing equipment, enabling the machine to better accommodate the processing characteristics of aramid fibers while handling UHMW-PE. This multi-functional, energy-efficient design offers customers a high-cost-performance composite material production solution.
