2026 Underwear Cutting Machine
2026-03-20
Underwear cutting machineusually refers to a specialized equipment used for cutting fabrics such as underwear, bras, and so on. It is also commonly referred to as a "Cutting Machine", "punching machine", or "die-cutting machine" in the industry.
Common Types
- Hydraulic arm/Swing Arm Cutting Machine
Using hydraulic drive, the rocker arm can swing left and right, suitable for production modes of small and medium-sized batches and multiple sizes. Commonly used for cutting sponge cups, shoulder straps, and other components.
Good stability, high cutting force and precision, suitable for handling multi-layer and thick fabrics, such as chest bands, mold cups, etc.

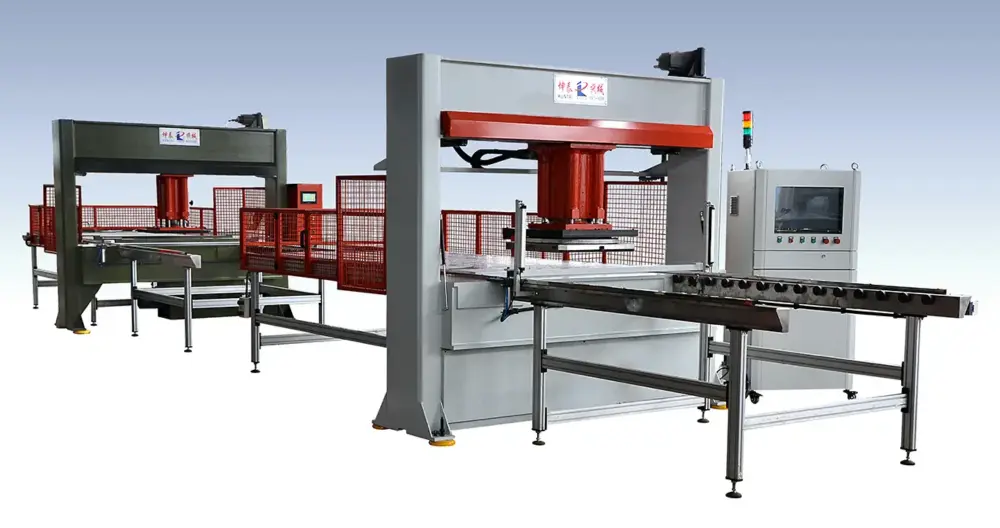

Equipped with automatic feeding (conveyor belt or sliding board feeding), cutting, and receiving functions, it has extremely high efficiency and is suitable for the production of large quantities and few styles of underwear. You can also choose CNC automatic nesting to save materials.
Market Price Reference
The price varies greatly due to configuration, brand, and degree of automation, and the following is a rough range:
Small/easy manual/rocker arm type: about ¥ 3000- ¥ 19000, suitable for small processing plants or studios.

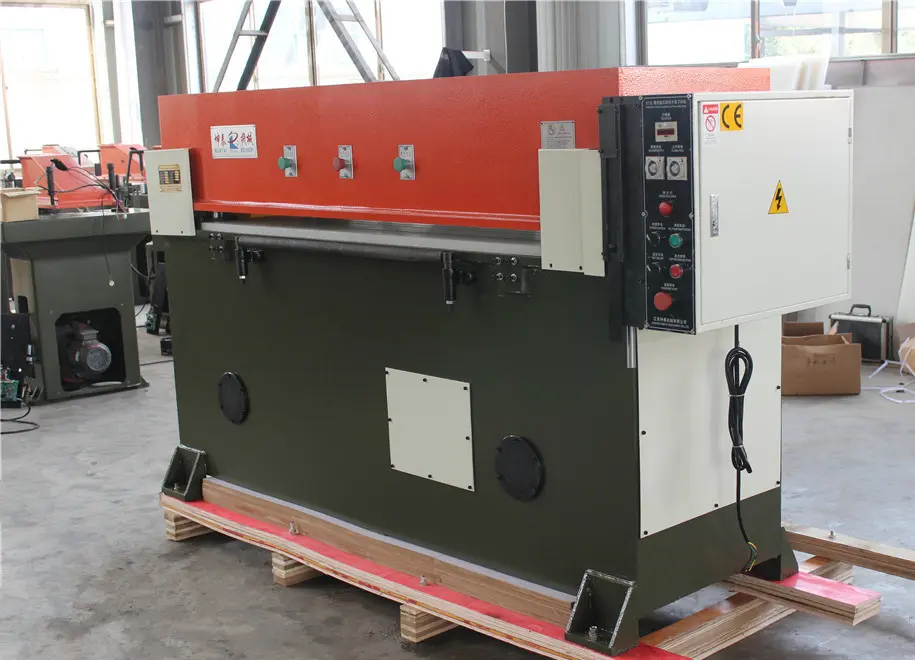

Medium sized four column Hydraulic Cutting Machine: approximately ¥ 15000- ¥ 30000+, is the main equipment in most underwear factories.
Fully automatic/servo feeding/rotating head type: approximately ¥ 30000- ¥ 60000+, suitable for large factories pursuing high efficiency.
How to choose a suitable cutting machine?
When making a purchase, you can refer to the following core elements:
- Clarify requirements
Production: For high daily output, fully automatic models are preferred; There are many styles and small batches, and the rocker arm or four column machine is more flexible.
Materials: Large or complex die molds require large tonnage (such as 35-50 tons or higher tons); Thin materials or small components (such as shoulder straps) can be selected in small tonnage.
Accuracy: High precision and high symmetry requirements (such as mold cups), models with servo positioning and automatic compensation functions should be selected.
Materials: Large or complex die molds require large tonnage (such as 35-50 tons or higher tons); Thin materials or small components (such as shoulder straps) can be selected in small tonnage.
Accuracy: High precision and high symmetry requirements (such as mold cups), models with servo positioning and automatic compensation functions should be selected.
- Focus on core parameters
Cutting force (tonnage): such as 30T, 40T, 50T, etc., determines the total perimeter of the cutting die blade line that can be cut.
Cutting area: such as 610 × 1250mm, determines the maximum cutting size that can be cut in a single operation.
Travel and speed: affect the single cutting cycle and directly affect production efficiency.
Control system: PLC+touch screen is more modern, making it easier to store and call parameters. CNC is more materials saving and automatic.
Cutting area: such as 610 × 1250mm, determines the maximum cutting size that can be cut in a single operation.
Travel and speed: affect the single cutting cycle and directly affect production efficiency.
Control system: PLC+touch screen is more modern, making it easier to store and call parameters. CNC is more materials saving and automatic.
- Investigate the brand and after-sales service
Priority should be given to manufacturers with good reputation and a well-established after-sales network to ensure timely installation, training, and maintenance services.
General operating procedures
Taking a common hydraulic cutting machine as an example:
- Power on preparation: Check the equipment status, clean the table, add hydraulic oil, connect the power and start the oil pump, and conduct a no-load test run.
- Installation and adjustment: Place the cutting die, pp plate, etc. in order, set the cutting die, adjust the cutting depth, and ensure that the material can be cut without damaging the bottom plate.
- Trial cutting and adjustment: Conduct trial cutting and adjust the cutting depth and pressure according to the effect.
- Formal production: Press the start button with both hands simultaneously, and the equipment will automatically complete one cutting. Take out the finished product, add new materials, and repeat the process.
- Shutdown and maintenance: After the work is completed, turn off the power, clean up the waste, and regularly maintain the hydraulic oil, filters, etc.
Safety Operation Instructions
Well trained operators: Operators must undergo training and are strictly prohibited from operating without training.
Standardized dress code: Dress neatly, tie up long hair, and prohibit wearing slippers.
Double handed operation: Both hands must be used to press the button simultaneously, and single handed or foot operated operation is strictly prohibited.
Maintain distance: Do not insert your hands or other parts of your body under the pressure head. When adjusting the cutting die or cleaning waste, be sure to stop the machine or place a safety block on it.
Exception handling: In case of abnormal noise, oil leakage, or other issues, immediately stop the machine and report for repair.
